Rail Cutter

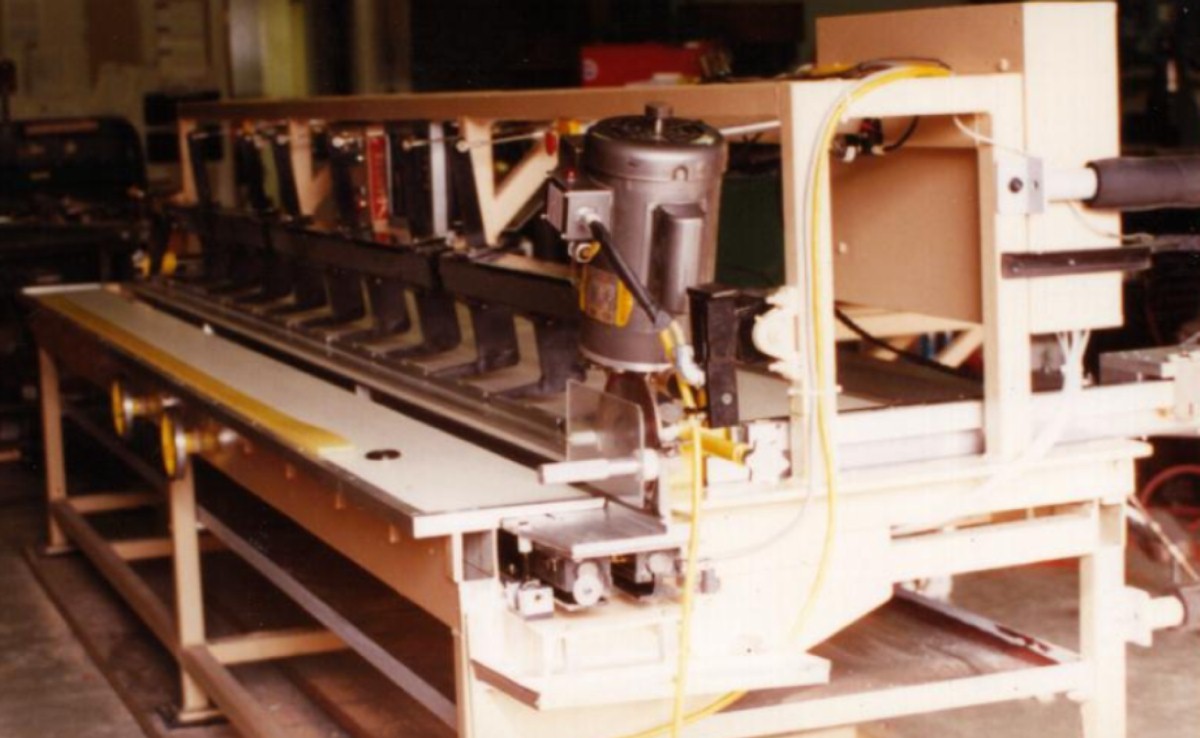

The Simplex Rail Cutter sets the industry standard for making precision 90-degree and parallel cuts. The rotary knife runs on an overhead rail system or a table mounted track system. Cutting accuracy is controlled to produce constantly superior straight square cuts!
Each Rail Cutter is custom designed to meet the specific needs of a customer defined parameter. Machines are built using:
- Rail system spans up to 84".
- Guided track systems up to 144".
- Cutting blade diameters of 7 ½" and 12".
- Motor and gear combinations to meet specific cutting needs.
The following table lists the cutting head configurations available
| Motor RPM |
Machine RPM |
Durometer Range |
Blade Diameter |
Motor HP |
| 3450 |
345 |
<60 |
7.5" |
.75 |
| 3450 |
345 |
<80 |
7.5" |
1.5 |
| 3450 |
172.5 |
<85 |
7.5" |
1.5 |
| 1750 |
87.5 |
<100 |
7.5" |
1.5 |
| 3450 |
172.5 |
<70 |
12" |
2.0 |
| 1750 |
87.5 |
<75 |
12" |
2.0 |
| 3450 |
345 |
<65 |
12" |
2.0 |
Standard features include:
coolant tank
blade sharpeners
knife guard
aluminum plate table surface with structural steel sub-frame
Optional features typically include:
manual and pneumatic assist/operated material clamp
material positioning ram
digital readout for strip width
coolant recovery system
power feed system for cutter head travel
variable speed DC motor for cutter head
Stainless Steel or laminate covered table surface
precision linear bearings for rail/track
Delivery and Pricing Information Quoted For Each Application
Have a specific question regarding the Simplex Rail Cutter?
E-mail Railinfo@SimplexCMCI.com
